63994-1
0.205" (5.21mm), 0.250" (6.35mm) Quick Connect Female Solder Connector Non-Insulated
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 63994-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

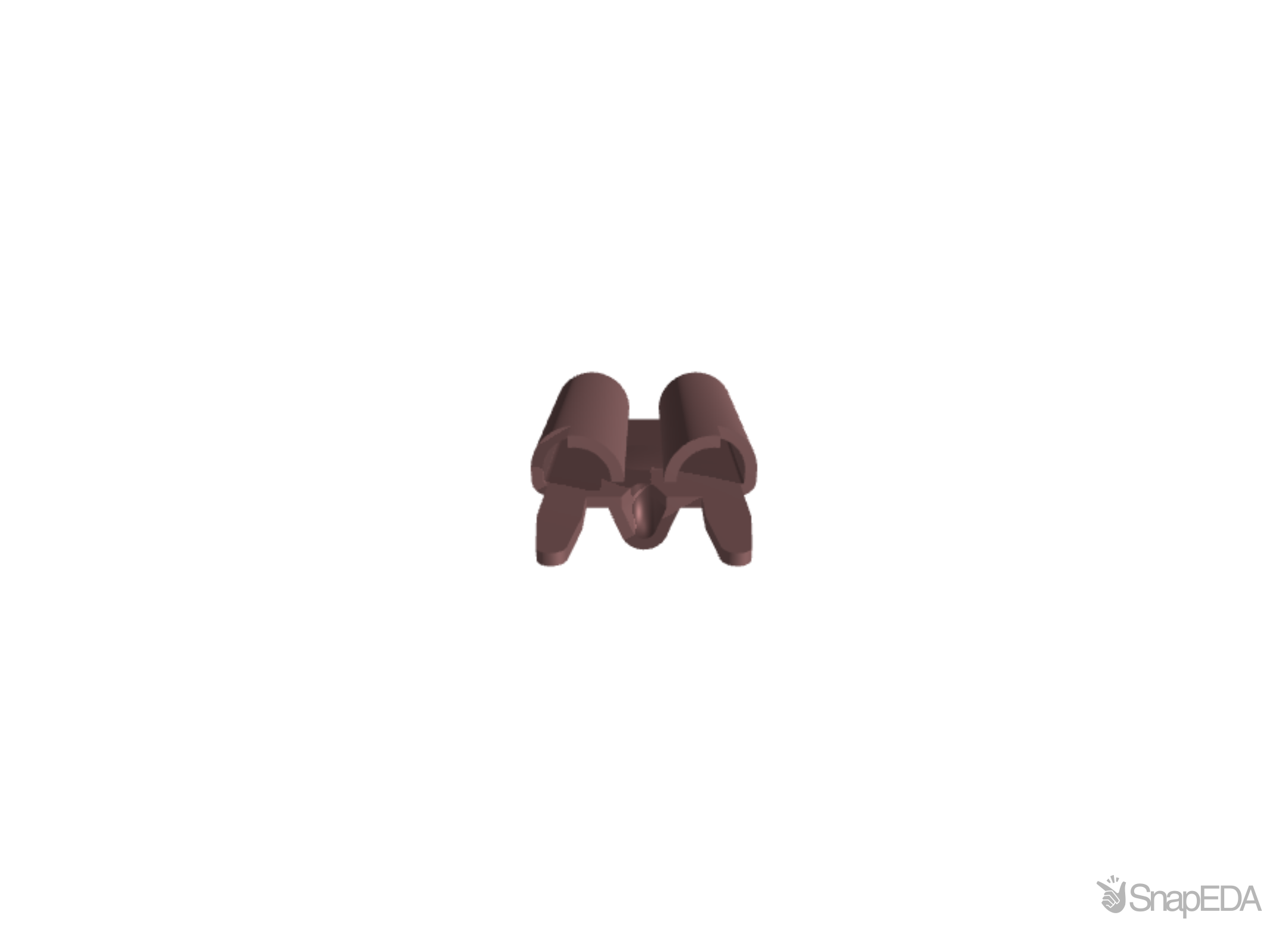

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 63994-1
| Part Name | 63994-1 |
| Manufacturer | TE Connectivity |
| PCB Hole Diameter | .055 |
| Terminal Size | 6.35 |
| Terminal Angle | Straight |
| FASTON | No |
| PCB Thickness (Recommended) | .062 |
| Plating Material | Tin |
| Receptacle Terminal Stock Thickness | .016 |
| Operating Temperature Range | -22 – 230 |
| Contact Plating Material | Tin |
| TE Internal Number | 63994-1 |
| Plating Thickness | 100 |
| Termination Method | Through Hole - Solder |
| Line | Budget |
| Terminal Type | Receptacle |
| Connection Capacity | Single |
| Terminal & Splice Type | Receptacle |
| Packaging Method | Reel |
| Packaging Quantity | 2800 |
| Stud Hole | No |
| Terminal Orientation | Straight |
| Height Above PC Board | .334 |
| Insertion Force | Low |
| RoHS | True |
| Mating Tab Width | .25 |
| Underplating Material | Nickel |
| Extension Below Board | .15 |
| Wire Insulation Support | Without |
| Mating Tab Thickness | .031 |
| Terminates To | Printed Circuit Board |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the 63994-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
14,479
|
|
Visit Site |
No issues have been reported for the 63994-1
If you experienced any issues with this part, please report it.
