C8051F064-GQ
8051 C8051F06x Microcontroller IC 8-Bit 25MHz 64KB (64K x 8) FLASH 100-TQFP (14x14)
Availability: In Stock
Package Type: TQFP-100
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the C8051F064-GQ by Silicon Labs and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
BuildFootprint
No web preview
This Footprint is Available for

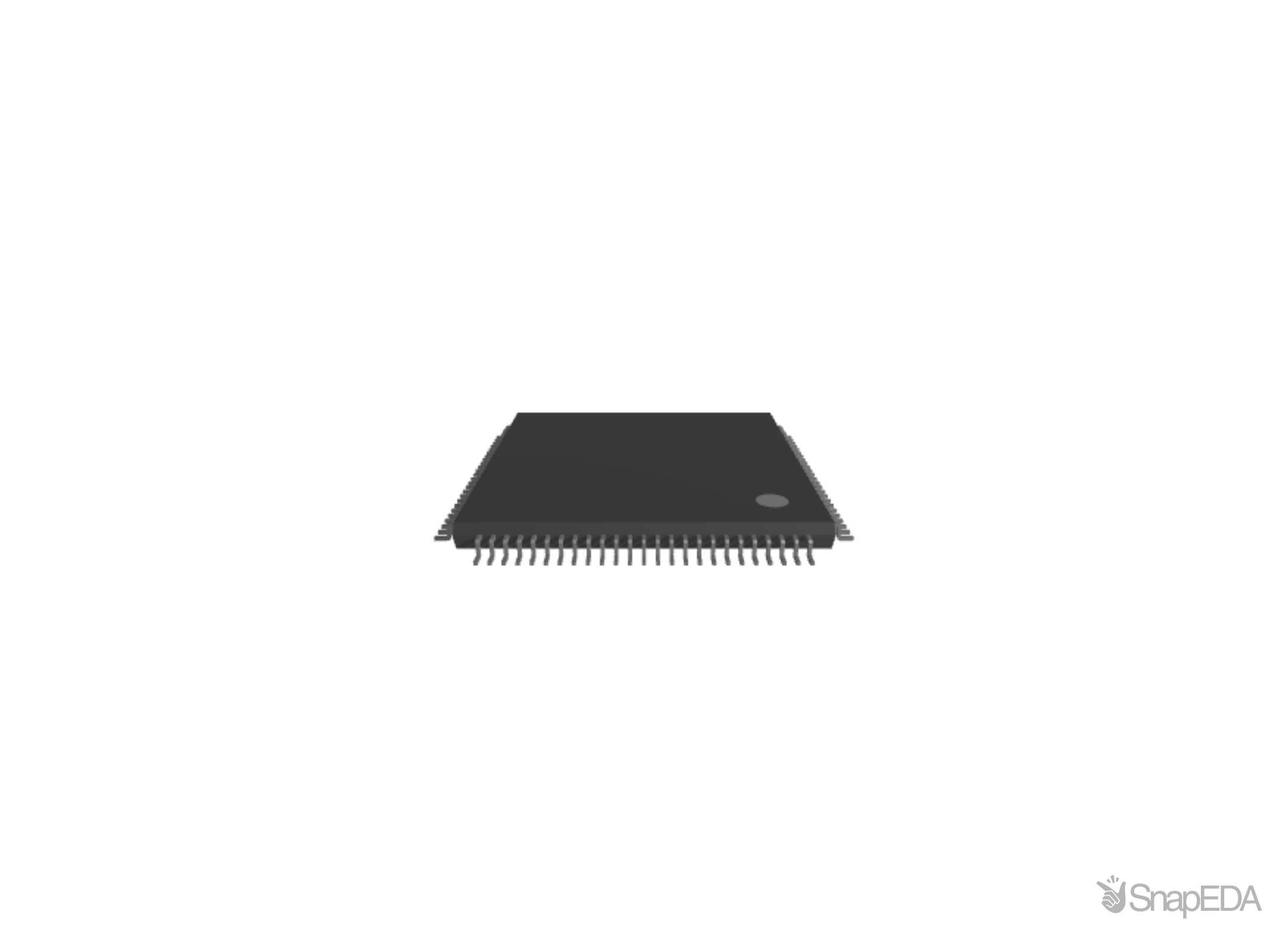

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the C8051F064-GQ
| Part Name | C8051F064-GQ |
| Manufacturer | Silicon Labs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 14 x 14 x 1.05 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 14 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Program Memory Size | 64 kB |
| Number Of Spi Channels | 1 |
| Ram Size | 4.352 kB |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | Harvard |
| Program Memory Type | Flash |
| Package Type | TQFP |
| Maximum Frequency | 24.5 (MHz) |
| Number Of Pwm Units | 2 |
| Number Of Adc Units | 2 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 2(8 x 16 bit) |
| Family Name | C8051F |
| Device Core | 8051 |
| Length | 14 (mm) |
| Usb Channels | 0 |
| Number Of Lin Channels | 0 |
| Pin Count | 100 |
| Pulse Width Modulation | 1(16 bit), 1(8 bit) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 0 |
| Height | 1.05 (mm) |
| Typical Operating Supply Voltage (V) | 2.7 → 3.6 V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 0 |
| Number Of Uart Channels | 2 |
Inventory for the C8051F064-GQ by Silicon Labs from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,712
|
|
Visit Site | |
|
★ Featured
|
22
|
|
Visit Site | |
|
★ Featured
|
1,980
|
15 x $23.98
|
Visit Site |
No issues have been reported for the C8051F064-GQ
