CSTLS8M00G53Z-A0

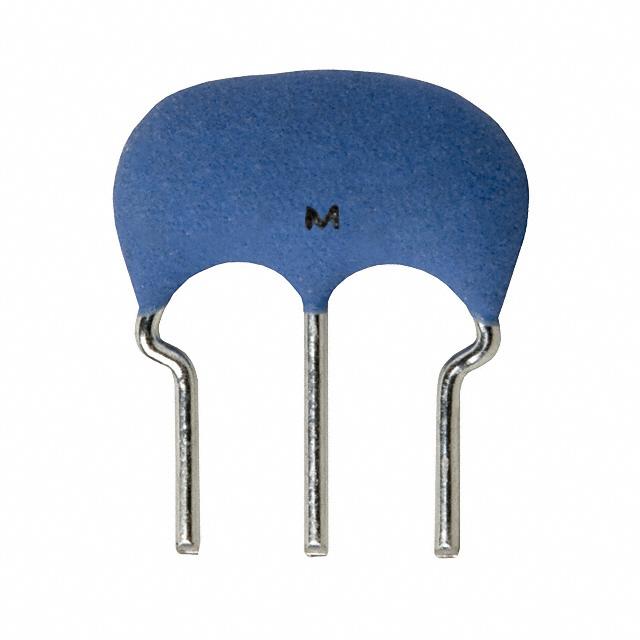

8 MHz Ceramic Resonator Built in Capacitor 15 pF ±0.2% 25 Ohms -40°C ~ 125°C Through Hole
Availability: In Stock
Package Type: RADIAL-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CSTLS8M00G53Z-A0 by Murata Electronics North America and for millions of electronic components.
