MS583702BA01-50
SnapVerified
Digital Pressure and Altimeter Sensor Modules
Availability: In Stock
Package Type: CYLINDER
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MS583702BA01-50 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

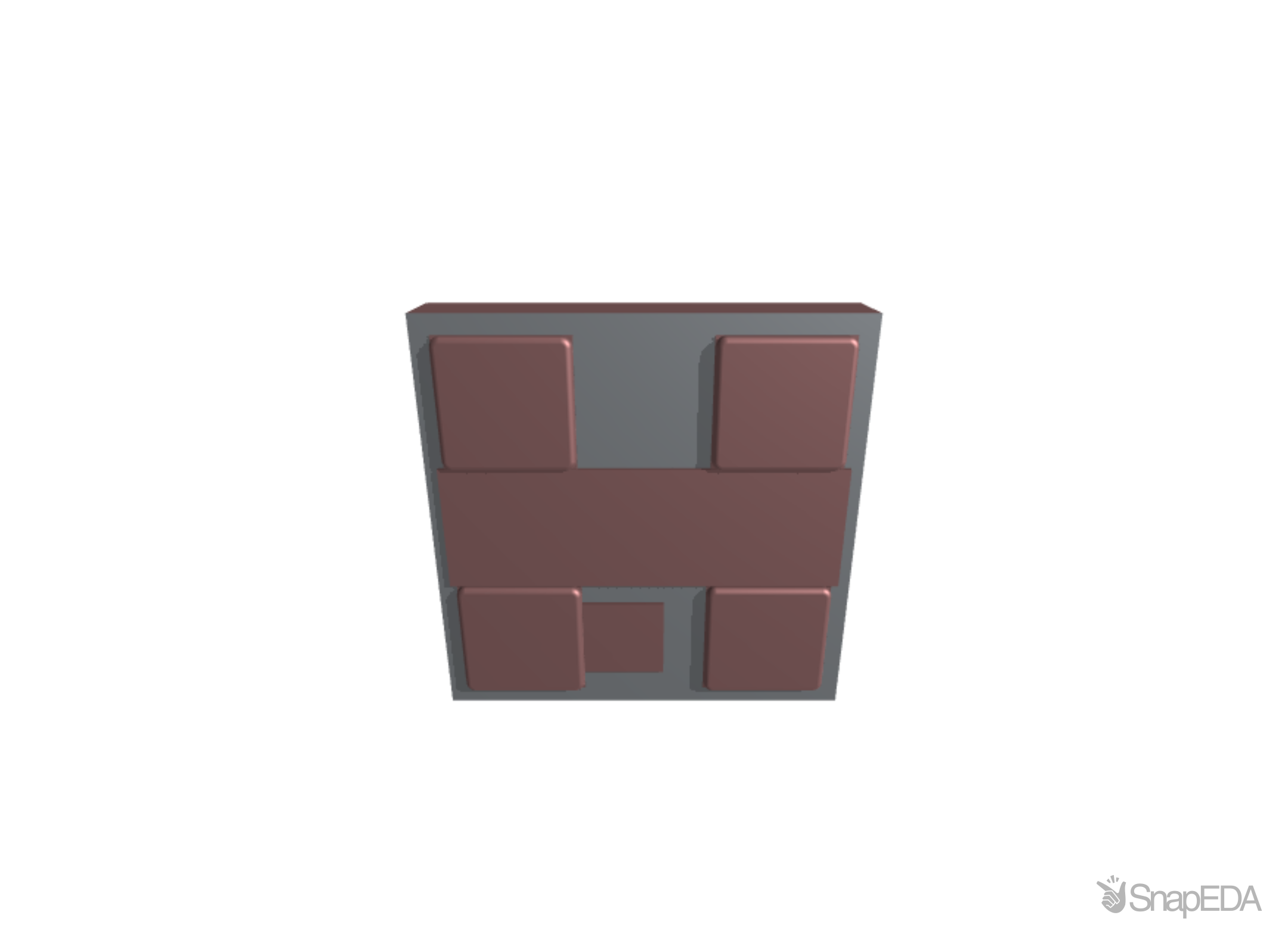

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MS583702BA01-50
| Part Name | MS583702BA01-50 |
| Manufacturer | TE Connectivity |
| Sensor Type | Digital Pressure and Altimeter Sensor Modules |
| Package | Surface Mountable |
| Resolution | .016 |
| Overpressure | 10 bar |
| TE Internal Number | MS583702BA01-50 |
| Output/Span | 24 bit ADC |
| Output Interface | I2C |
| Pressure | 2 |
| Supply Voltage (V) | 1.5 – 3.6 |
| Operating Temperature Range | -20 – 85 |
| Accuracy | ±0.5mbar |
| Type | Absolute |
| Options | No Option |
| RoHS | True |
| Dimensions | 3.3 x 3.3 x 2.75 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the MS583702BA01-50 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,952
|
1 x $14.83
|
Visit Site |
No issues have been reported for the MS583702BA01-50
If you experienced any issues with the symbol or footprint, please report it.
