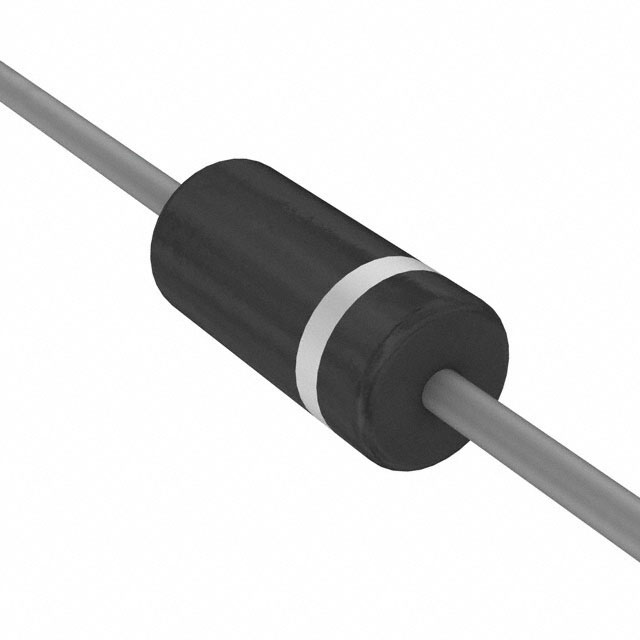

P6KE15A
27.2V Clamp 147A (8/20µs) Ipp Tvs Diode Through Hole DO-204AC (DO-15)
Availability: In Stock
Package Type: DO-204
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the P6KE15A by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

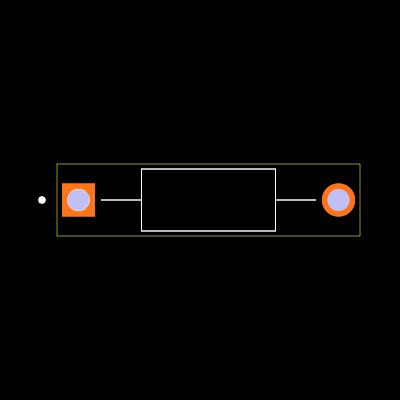

Footprint
No web preview
This Footprint is Available for

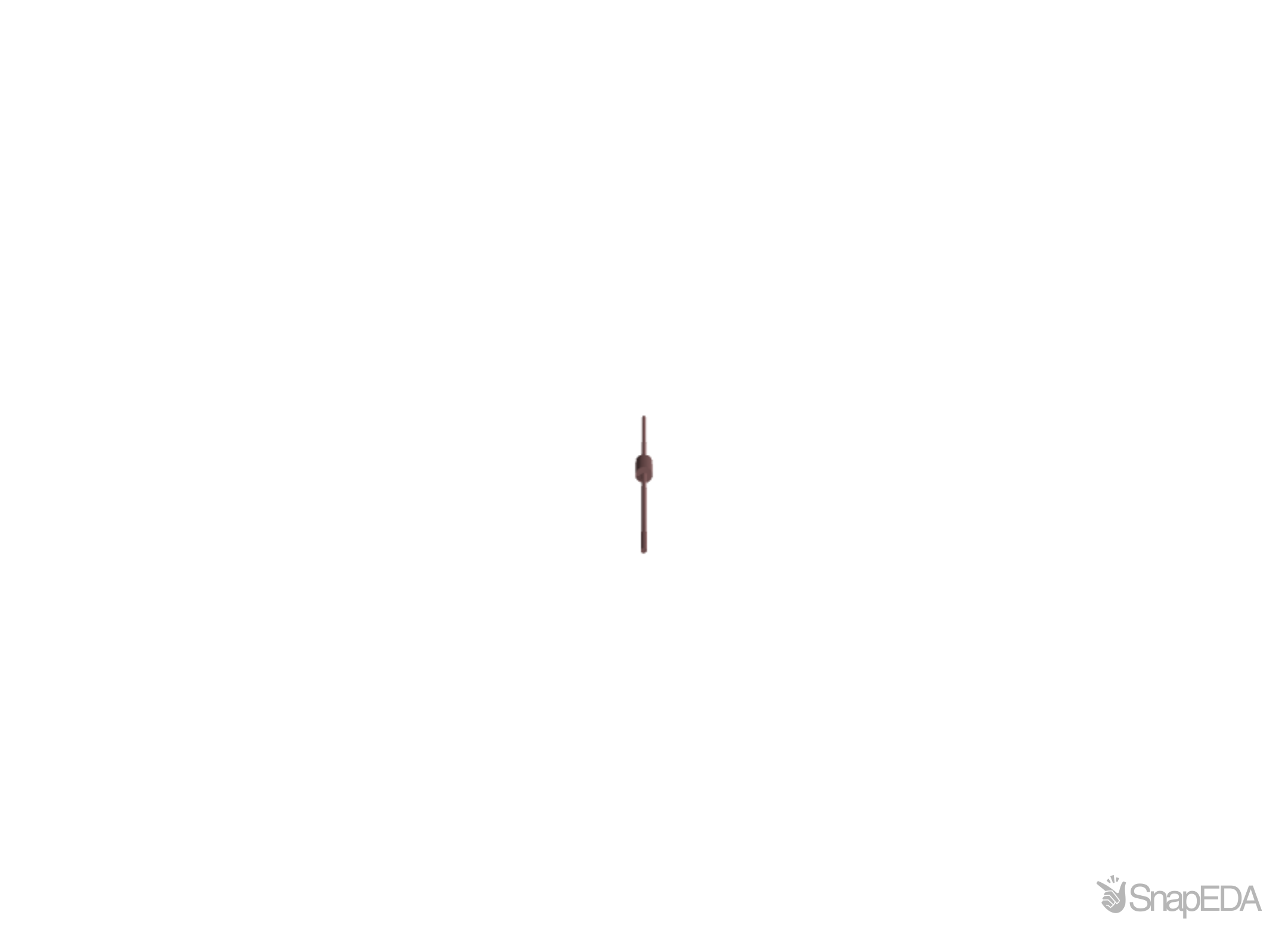

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the P6KE15A
| Part Name | P6KE15A |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | 147 (A) |
| Maximum Reverse Stand-Off Voltage (V) | 12.8 (V) |
| Dimensions | 6.75 x 3.53 x 3.53 (mm) |
| Minimum Breakdown Voltage (V) | 14.3 (V) |
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Reverse Leakage Current (A) | 1 (µA) |
| Height | 3.53 (mm) |
| Width | 3.53 (mm) |
| Length | 6.75 (mm) |
| Package Type | DO-15 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Mounting Type | Through Hole |
| Maximum Clamping Voltage (V) | 27.2 (V) |
| Maximum Operating Temperature | +175 °C |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600 (W) |
| Test Current (A) | 1 (mA) |
