SFW15R-2STE1LF

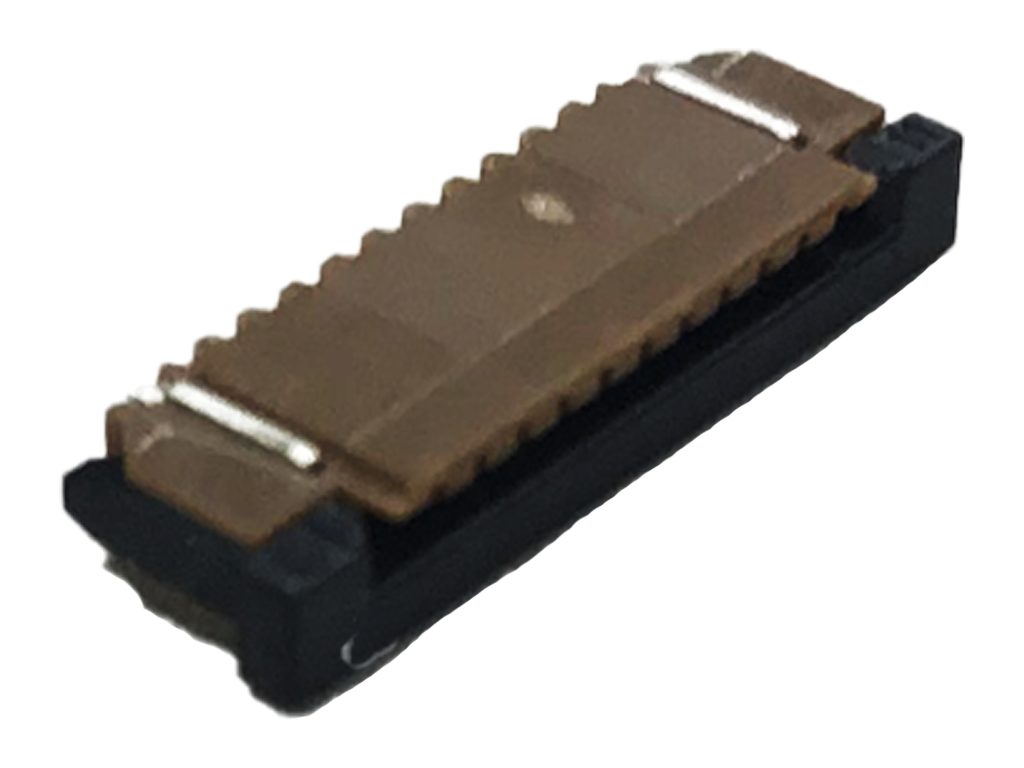

1.00mm Flex Connector, SFW-R series, 15 Position, Upper Side Contact, Side Entry Surface Mount ZIF Connector, Lead Free.
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SFW15R-2STE1LF by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

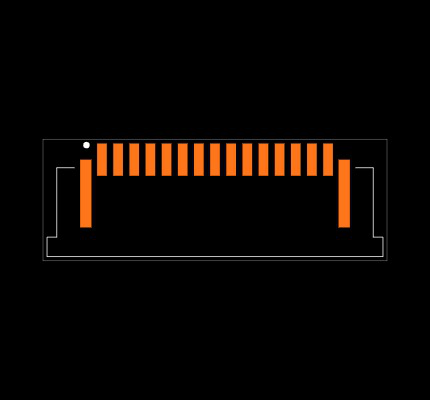

Footprint
No web preview
This Footprint is Available for

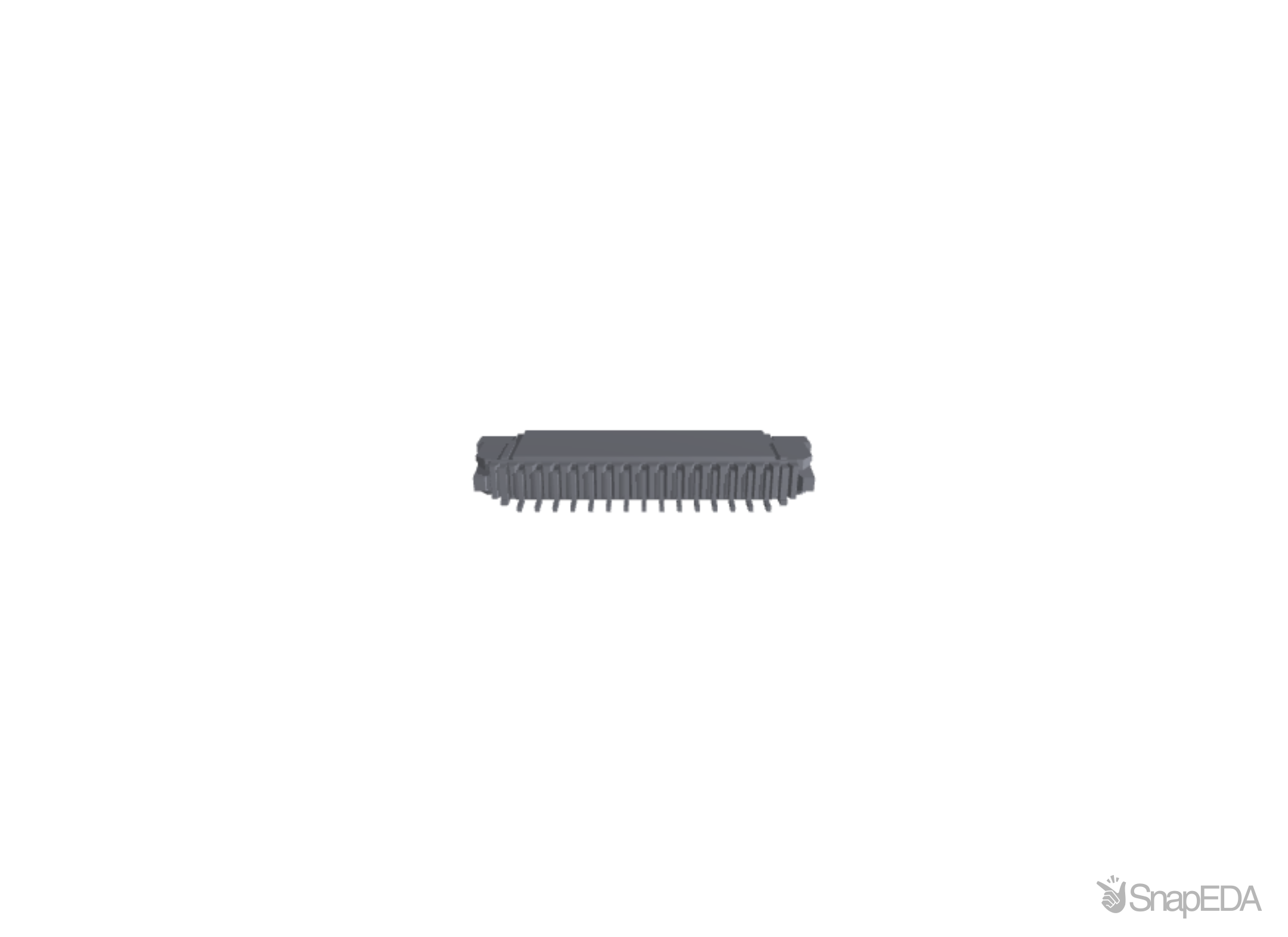

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SFW15R-2STE1LF
| Part Name | SFW15R-2STE1LF |
| Manufacturer | Amphenol ICC |
| RoHS | True |
| Product Link | https://www.amphenol-cs.com/product/SFW15R2STE1LF.html |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Drawing/Datasheet | Drawing/Datasheet |
| eBrochure | eBrochure |
| Termination Method | Solder |
| Termination Type | ZIF Top Contact |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 100 V ac/dc |
| Gender | Female |
| Body Orientation | Right Angle |
| Pitch | 1 (mm) |
| Contact Position | Top |
| Housing Material | Glass Reinforced PPS |
| Number Of Rows | 1 |
| Minimum Operating Temperature | -55 (°C) |
| Series | SFW15R |
| Insertion Force | ZIF |
| Contact Plating | Tin |
| Number Of Contacts | 15 |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Phosphor Bronze |
Inventory for the SFW15R-2STE1LF by Amphenol from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
4,000
|
|
Visit Site | |
| Compona AG |
4,000
|
|
Visit Site | |
| Farnell UK |
855
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
855
|
|
Visit Site | |
| RS UK |
12
|
|
Visit Site | |
| Rutronik |
4,000
|
|
Visit Site | |
| TME |
|
4,000 x $0.38
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| element14 Singapore |
855
|
|
Visit Site |
No issues have been reported for the SFW15R-2STE1LF
